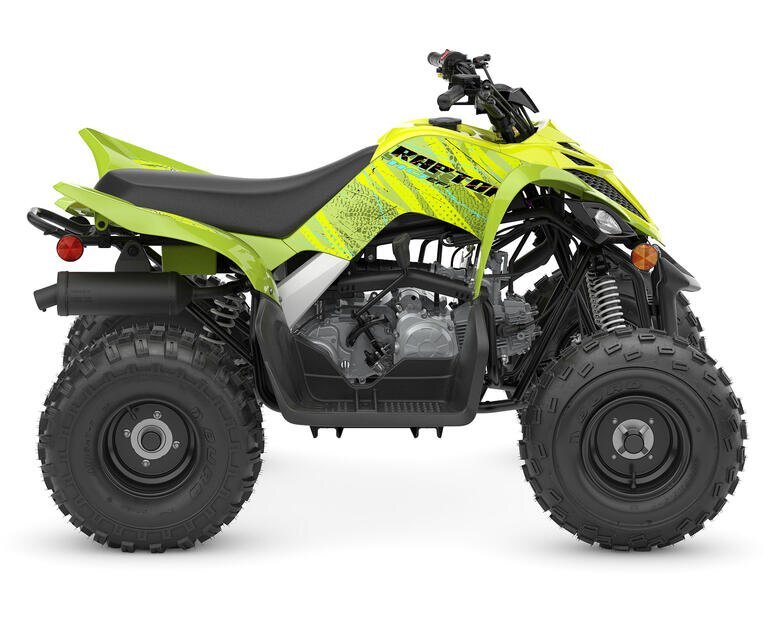

2026 Yamaha Raptor 110 Acid Green

  • 2026 Yamaha Raptor 110 Acid Green
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo  Print
Overview

CALLING NEW RIDERS. With a 112cc engine, fuel injection, electric start and legendary Raptor styling, this youth ATV is pure fun for riders age 10 and up.

Specifications
Model
RAPTOR
Category Name
ATVs
Year
2026
Manufacturer
Yamaha
Color
Acid Green
engine
ENGINE
Air-cooled, SOHC, 2-valve, single
Starting
Electric with auxillary kick
FINAL DRIVE
O-ring Chain Drive
DISPLACEMENT
112cc
TRANSMISSION
Fully automatic CVT with reverse
FUEL DELIVERY
Yamaha Fuel Injection (YFI), 22mm
BORE AND STROKE
52.4mm x 51.8mm
COMPRESSION RATIO
9.2:1
chassis
TIRES (REAR)
AT18 x 9-8
BRAKES (REAR)
Drum
TIRES (FRONT)
AT18 x 7-8
BRAKES (FRONT)
Dual Drum
SUSPENSION (REAR)
Monoshock swingarm; 5.7" travel
SUSPENSION (FRONT)
Single A-arm; 5.0-in travel
highlights

2026 Yamaha Raptor 110 Acid GreenCONFIDENCE

For sporty looks and handling, the Raptor 110 uses low-profile Duro® tires on lightweight wheels and styling that's unmistakably inspired by the mighty Raptor 700R.

2026 Yamaha Raptor 110 Acid GreenCOMFORT

Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality. The preload-adjustable front shocks offer 5-inches of wheel travel and add to the Raptor 110’s sporty look. The rear swingarm also features a 5-way preload adjustable shock, offering 5.7-inches of wheel travel.

2026 Yamaha Raptor 110 Acid GreenCAPABILITY

The new EFI system with an ECU delivers strong, reliable performance. A sealed, maintenance-free battery provides worry-free operation. Convenient handlebar-mounted reverse and neutral indicators, along with new engine warning and low-fuel warning lights keep the rider informed in all situations.



key features
  • NEW! Fuel-injected 112cc four-stroke SOHC engine
  • Push-button electric starting
  • Single overhead camshaft (SOHC), 2-valve design.
  • Flat top piston & lightweight ball bearing style crankshaft.
  • Automatic cam chain adjuster.



critical data
WIDTH
40.2 in
HEIGHT
39.0 in
LENGTH
58.5 in
Warranty
One year (unlimited mileage)
WHEELBASE
40.6 in
WET WEIGHT
287.5 lb
SEAT HEIGHT
29.5 in
features & benefits

ENGINE

  • Air-cooled, 112cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, reliable, novice friendly power.
    • Proven, reliable design
    • Easy to use, linear power delivery
    • Solid low-to-mid-range performance
    • Air cooling for simplicity & reduced maintenance
  • Push-button electric starting backed up by an auxiliary kick starter.
    • Electric starting makes learning to ride more fun
  • Single overhead camshaft (SOHC), 2-valve design.
    • Simple 1- intake valve & 1- exhaust valve cylinder head design
    • Utilizes conventional rocker arms & screw type tappet adjusters for easier maintenance
  • Flat top piston & lightweight ball bearing style crankshaft.
    • 9.2:1 compression ratio, uses regular gas
    • Lightweight components means faster engine response
  • Automatic cam chain adjuster.
    • Reduces maintenance & mechanical engine noise
  • Fully automatic CVT transmission with reverse.
    • Automatic clutch and no gears allows young riders to concentrate on the basics of riding & developing riding skills
    • Automotive style gated shifter: forward, neutral & reverse
    • Handlebar mounted indicator lights provide indication of drive selection (Neutral or reverse)
  • Easy access, no tools required washable foam air filter.
    • Reduces maintenance costs
    • Re-usable design

Chassis

  • Rugged round tube steel frame.
    • Compact design provides nimble, responsive handling
    • Low seat height (750 mm / 29.5") makes getting on & off easy
  • Adjustable independent, single A-arm front suspension.
    • 5-position spring preload adjustability to match rider weight and / or trail conditions
    • 126 mm (5") front wheel travel
    • Grease fitting on selected components
  • Adjustable single shock rear suspension.
    • 5-position spring preload adjustability
    • 145 mm (5.7") front wheel travel
  • Dual front drum brakes.
    • Independent (separate) front & rear braking for enhanced control & terrain-ability
    • Hand-operated brake levers are similar to those used on a bicycle for easy familiarity
  • Single drum rear brake with handlebar mounted lever style parking brake.
    • Consistent braking performance
  • Rugged steel rims fitted with 18" tires.
    • Steel rims provide excellent durability & traction
    • Tire design enhances steering precision, ride comfort & traction
  • Rugged & roomy floorboards.
    • Excellent rider foot protection
    • Helps reduce mud & water splash
  • Sporty styling & rugged body work.
    • Sporty styling & high fenders are inspired by the mighty Raptor 700R.
  • Durable O-ring drive chain.
    • Single adjusting bolt makes chain adjusting easy
  • Low maintenance, sealed battery (battery should be charged during extended storage).
    • Battery is sealed... no need to check electrolyte levels or add distilled water

SAFETY FEATURES

  • Keyed ignition lets parents control use
  • Heat shields on exhaust protect young riders from hot components
  • Adjustable speed limiter screw on throttle housing restricts throttle lever movement to reduce acceleration & top speed.
  • 2-stage rpm limiter device limits engine rpm. As skills improve, the limiter can be removed & maximum engine rpm will increase from 4,900 rpm to 8,500 rpm making a significant difference in power & performance.
